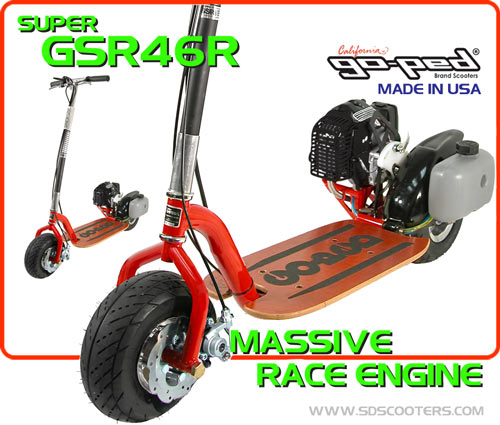

Specifications - GSR46R Gas Scooters
|
| Model |
GSR46R |
| Engine |
GP460RS |
| Engine Type |
Air Cooled Single-Cylinder |
| Engine Size |
45.7cc |
| Bore and Stroke |
40mm x 33mm |
| Carburation |
Walbro 19mm |
| Maximum Speed |
Fastest Production Scooter In The World |
| Drive |
Chain Drive |
| Transmission |
Automatic Centrifugal Clutch |
| Sprocket ratio |
6:76 |
| Chain |
#25 heavy duty non o-ring |
| Frame |
Patented heavy Duty 4130 Chromoly aircraft quality steel frame |
| Fork |
Extreme Duty 4130 Chromoly aircraft quality steel fork - Double Sided |
| Handlebar |
6061-T6 hardened aluminum Aircraft Grade fitted with slide tube
clamp |
| Engine Mount |
Patent pending - combination solid aluminum third bearing/clutch housing
with easy chain adjusting and chain guard |
| Fuel Tank Capacity |
1.5 liter - patented |
| Wheels |
Ultra Light Magnesium Rims |
| Tires |
Pneumatic TT Tires - 10inch |
| Brakes |
Front and Rear Stainless Steel Mad Dog Disc Braking System |
| Folding |
Effortless folding feature for easy storage and carrying |
| Weight |
35 lbs |
| Capacity |
400lbs |
| Suggested Usage |
Racing And More |
| Additional Features |
Heavy duty rear axle |
|
Unbreakable fender |
|
Idle/Free wheel capable |
|
Motorcycle style racing handlebars |
|
Pro Clamp |
|
Race Engine |
|
Pro Brake Lever |
|
